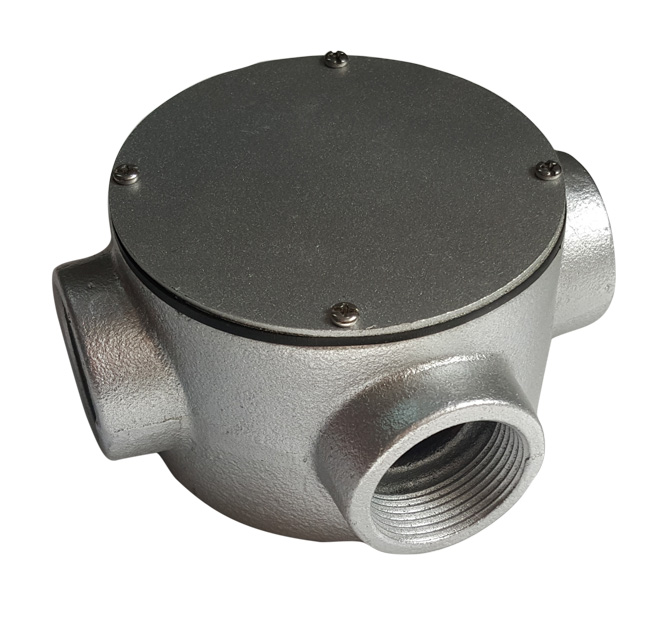

XB200 TB series outlet box
 |
◎ Application
1、Connect conduit
2、Change direction of conduit runs
3、Provide conduit branch
◎ Features
1、Shell and cover plate are 316 stainless steel, with high strength and good corrosion resistance
2、Convenient for pulling more cable with big inner volume. 3、wear free of cable with smooth box inner surface.
4、Gasket material: butadiene cyanogen rubber protection class: IP65
5、Stainless steel fixing material, good anticorrosion performance.
6、Screw integrated on the cover, prevent loosing screw when opening the cover.
7、The inner chamber is connected with the terminal and the connection is convenient.

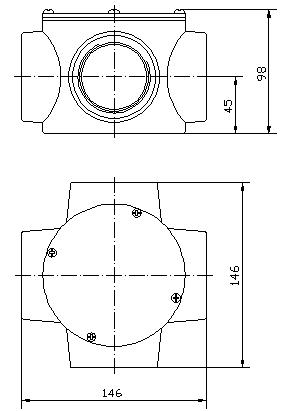

◎ Dimensions

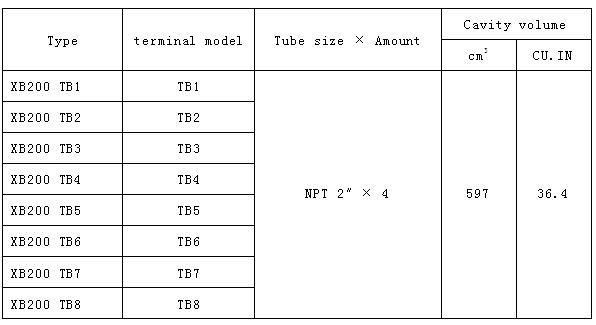

◎ Product selection data
(note: terminal selection can be found in the TB series cage spring terminals)
